Compact Wall-Penetrating Bridge
300m Wall-Penetrating Wireless Bridge
Outdoor wireless bridge for up to 300m, built for point-to-point and point-to-multipoint backhaul with Ethernet / TTL.
Designed for shorter-range wall-penetrating wireless links.
Supports Ethernet and TTL serial integration in compact deployments.
Suitable for building interiors, equipment rooms, and local remote links.
Key Benefits
Better Indoor Penetration
Useful where rooms, partitions, and internal structures reduce ordinary WiFi stability.
Compact Deployment
Smaller size supports short-link installations in equipment spaces and building systems.
Wired Device Integration
Ethernet and TTL support make it suitable for short-distance industrial and control links.
Product Details

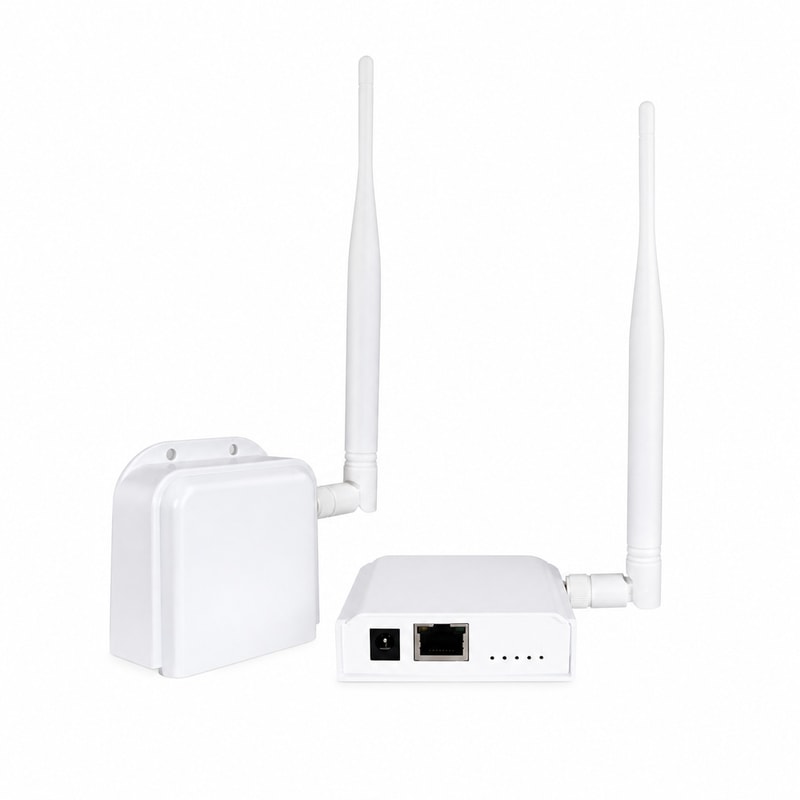

Main Bridge Body
The main body image shows the real compact bridge structure used for short-range wall-penetrating deployments.

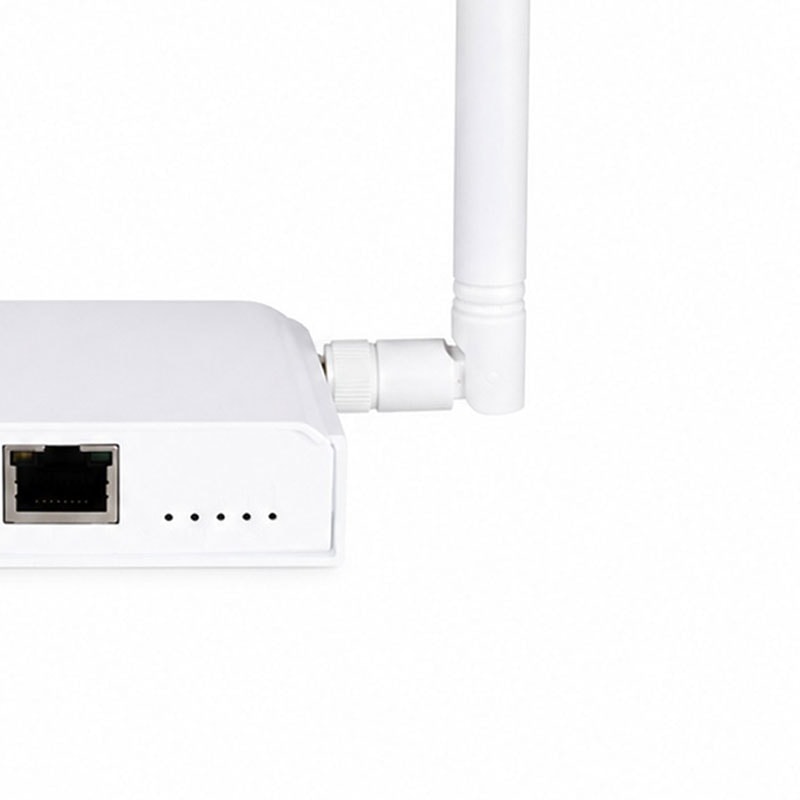

Product Detail
A closer local-material view highlights the product finish and body layout while keeping the hardware unchanged.
Applications
Building coverage
Room-to-room links
Control cabinets
Smart devices
X0m provides a practical wireless backhaul link for cameras, buildings, campuses, and remote sites where cabling is difficult or costly. Key specifications include Designed for shorter-range wall-penetrating wireless links.; Supports Ethernet and TTL serial integration in compact deployments..
Deployment Fit
Use it for surveillance backhaul, building-to-building connectivity, industrial sites, and other outdoor links that require stable throughput.
Product Data
Technical Specifications
| Item | Value |
|---|---|
| Communication Standard | IEEE 802.11ah (WiFi HaLow) |
| Frequency Band | 902-928MHz (USA), 863-868MHz (EUR) |
| Channel Bandwidth | 8MHz |
| Data Rate | 16 Mbps |
| Receiver Sensitivity | 1M PPDU = -105dBm, 8M PPDU MCS0 = -95dBm, 8M PPDU MCS7 = -81dBm |
| Max Network Nodes | Up to 8 access points |
| Transmit Power | Max 20dBm (100mW) |
| Modulation | BPSK, QPSK, QAM16, QAM64 |
| Transmission Range | 500m (LOS), 300m (NLOS) |
| Security Protocol | WPA2-PSK |
| Encryption | AES |
| Ethernet Port | 10/100 Mbps |
| Serial Port | TTL Level |
| Baud Rate | 115200 |
| Power Supply | DC5V / 1A, DC12V / 1A |
| LED Indicators | Power, AP/Client Mode, Signal Strength |
| Input Voltage | 5V / 1A |
| Operating Temperature | -20C to 70C |
| Storage Temperature | -30C to 80C |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% to 95% |
| Dimensions | 74 x 69 x 24mm, excluding antenna |
| Weight | 49.6g |
