Outdoor Wireless Bridge
3km WiFi HaLow Bridge
Outdoor WiFi HaLow wireless bridge for stable 3km links, wall penetration, and field deployment.
Long-range 3km outdoor bridge based on IEEE 802.11ah.
Designed for strong wall penetration and stable remote wireless coverage.
Suitable for point-to-point and point-to-multipoint deployment.
Key Benefits
Outdoor Long-Range Bridge
Built for longer point-to-point and one-to-many wireless links in remote outdoor environments.
Strong Penetration
Designed to maintain better wireless performance where walls and obstacles reduce ordinary WiFi coverage.
Practical Field Hardware
Installation, Ethernet connection, and antenna connection are arranged for outdoor deployment.
Product Details

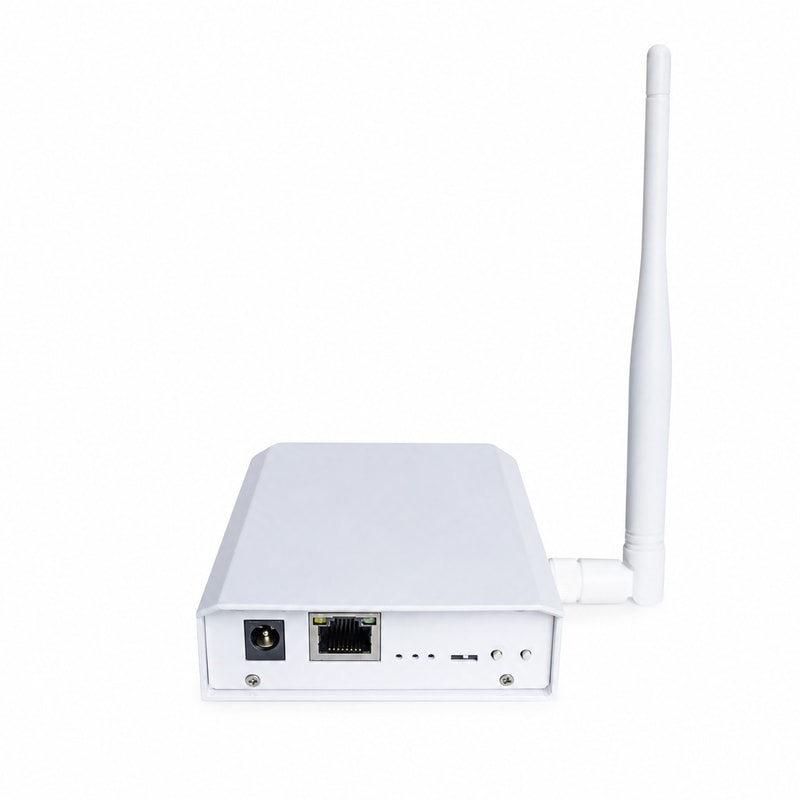

Main Bridge Unit
The primary bridge body is shown with the original outdoor structure preserved for a more realistic hardware presentation.

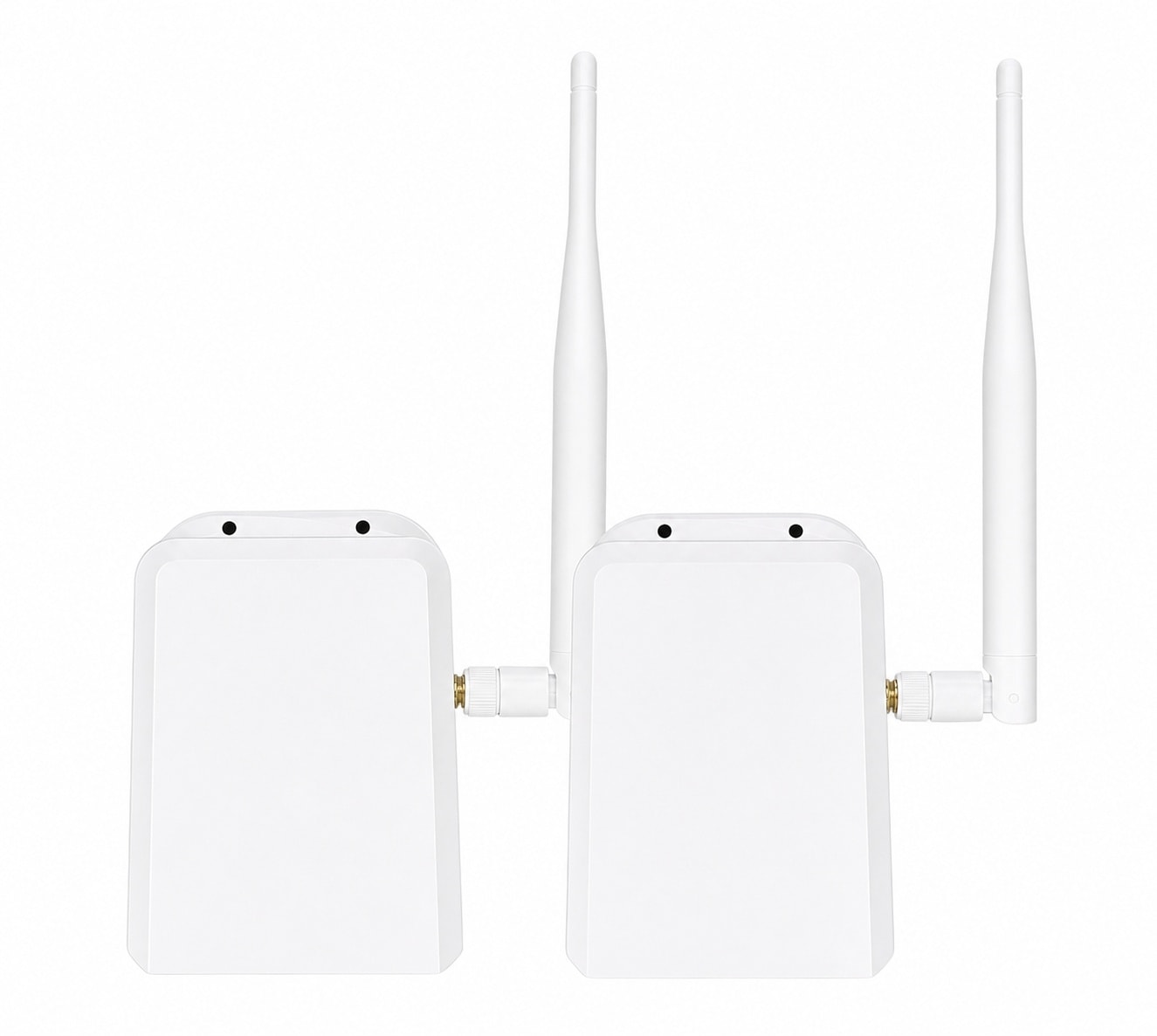

Product Detail
The second detail image focuses on real product form and mounting-related structure rather than altered concept art.
Applications
Outdoor monitoring
Multi-point wireless links
Remote site coverage
Industrial yards
Overview
This bridge is intended for longer outdoor HaLow links where stable coverage, point-to-point connectivity, and wall penetration are central requirements.
Deployment Fit
It is well suited to camera backhaul, yard coverage, and remote-area wireless links that need a straightforward outdoor bridge form factor.
Product Data
Technical Specifications
| Item | Value |
|---|---|
| Communication Standard | IEEE 802.11ah (WiFi HaLow) |
| Frequency Band | 902-928MHz (USA), 863-868MHz (EUR) |
| Channel Bandwidth | 8MHz |
| Data Rate | 16 Mbps |
| Receiver Sensitivity | 1M PPDU = -105dBm, 8M PPDU MCS0 = -95dBm, 8M PPDU MCS7 = -81dBm |
| Max Network Nodes | Up to 31 access points |
| Transmit Power | Max 33dBm +/- 2dBm |
| Modulation | BPSK, QPSK, QAM16, QAM64 |
| Transmission Range | 3km (LOS), 500m (NLOS) |
| Security Protocol | WPA2-PSK |
| Encryption | AES |
| Ethernet Port | 10/100 Mbps |
| Power Supply | DC12V / 1A |
| LED Indicators | Power, AP/Client Mode, Signal Strength |
| Input Voltage | DC12V / 1A |
| Operating Temperature | -20C to 70C |
| Storage Temperature | -30C to 80C |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% to 95% |
| Dimensions | 114 x 84 x 30mm, excluding antenna |
| Weight | 105g |
