2W PA Bridge Board
WiFi HaLow Bridge Board + 2W PA Module
High-power WiFi HaLow bridge board with 2W amplifier for long-range image, data, and industrial links.
2W amplifier design for stronger long-range wireless performance.
Built for image transmission, remote monitoring, and industrial links.
Practical Ethernet bridge structure for outdoor wireless deployment.
Key Benefits
Amplified Wireless Reach
The 2W PA architecture supports stronger output for demanding long-range field deployments.
Built For Visual Data Links
Suitable for image transmission, monitoring traffic, and remote device communication.
Outdoor-Ready Use
Designed to support real outdoor conditions with practical wiring and device integration.
Product Details

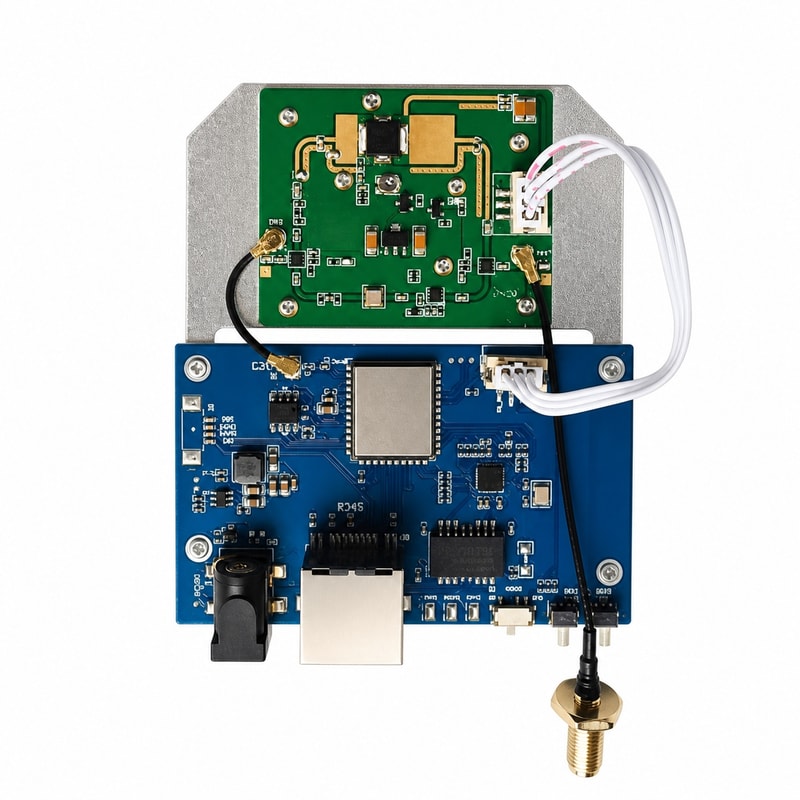

Bridge Board Structure
The real bridge board image presents the original product layout used for high-power wireless deployment.

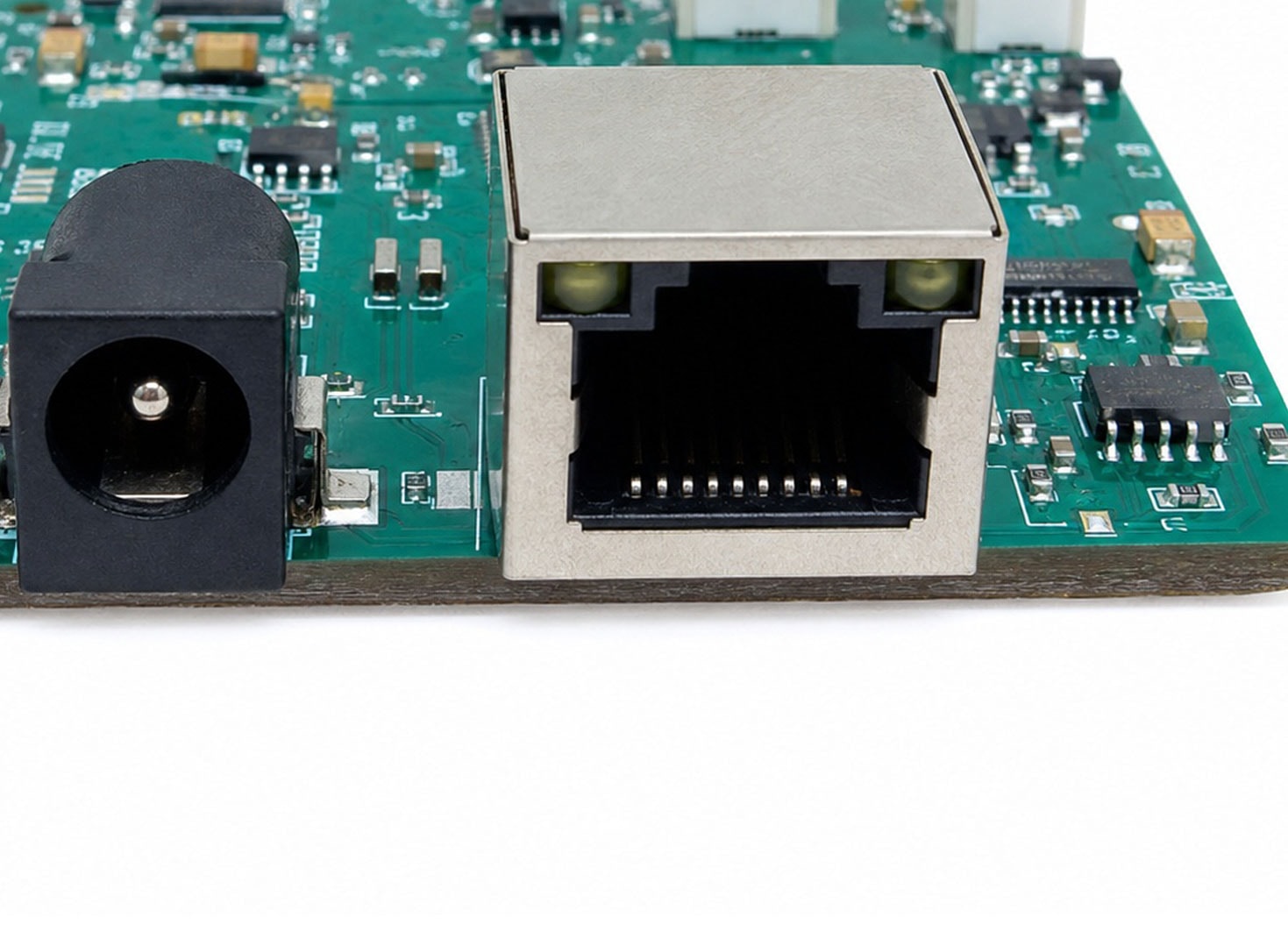

Product Detail
The second detail visual focuses on true board structure and hardware finish rather than modified render styling.
Applications
Drone video transmission
Remote camera image transmission
Industrial control
Smart agriculture
Overview
This board is aimed at projects that need more output headroom from a compact HaLow platform, especially for visual data and monitoring links.
Deployment Fit
It is a practical choice for OEM integration, outdoor bridge hardware, and long-range communication designs that benefit from a 2W PA stage.
Product Data
Technical Specifications
| Item | Value |
|---|---|
| Communication Standard | IEEE 802.11ah (WiFi HaLow) |
| Frequency Band | 902-928MHz (USA), 863-868MHz (EUR) |
| Channel Bandwidth | 8MHz |
| Data Rate | 16 Mbps |
| Receiver Sensitivity | 1M PPDU = -105dBm, 8M PPDU MCS0 = -95dBm, 8M PPDU MCS7 = -81dBm |
| Max Network Nodes | Up to 31 access points |
| Transmit Power | Max 33dBm +/- 2dBm |
| Modulation | BPSK, QPSK, QAM16, QAM64 |
| Transmission Range | 3km (LOS), 500m (NLOS) |
| Security Protocol | WPA2-PSK |
| Encryption | AES |
| Ethernet Port | 10/100 Mbps |
| Power Supply | DC12V / 1A |
| LED Indicators | Power, AP/Client Mode, Signal Strength |
| Antenna Connector | IPEX |
| Input Voltage | DC12V / 1A |
| Operating Temperature | -20C to 70C |
| Storage Temperature | -30C to 80C |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% to 95% |
| Dimensions | 90 x 75mm |
| Weight | 38g |
