Compact Type-C Module
WiFi HaLow Type-C Powered Module
Compact WiFi HaLow module with Type-C power for lightweight long-range IoT and monitoring deployments.
Type-C powered WiFi HaLow module for compact and portable deployment.
Supports long-range image and data transmission in small-form-factor projects.
Suitable for remote monitoring, field tools, and lightweight terminals.
Key Benefits
Easy Power Input
Type-C power simplifies development, testing, and lightweight field deployment.
Small-Scale Integration
Compact sizing supports portable kits, embedded devices, and space-limited products.
Long-Range IoT Utility
Designed for low-complexity wireless image and data communication in distributed environments.
Product Details

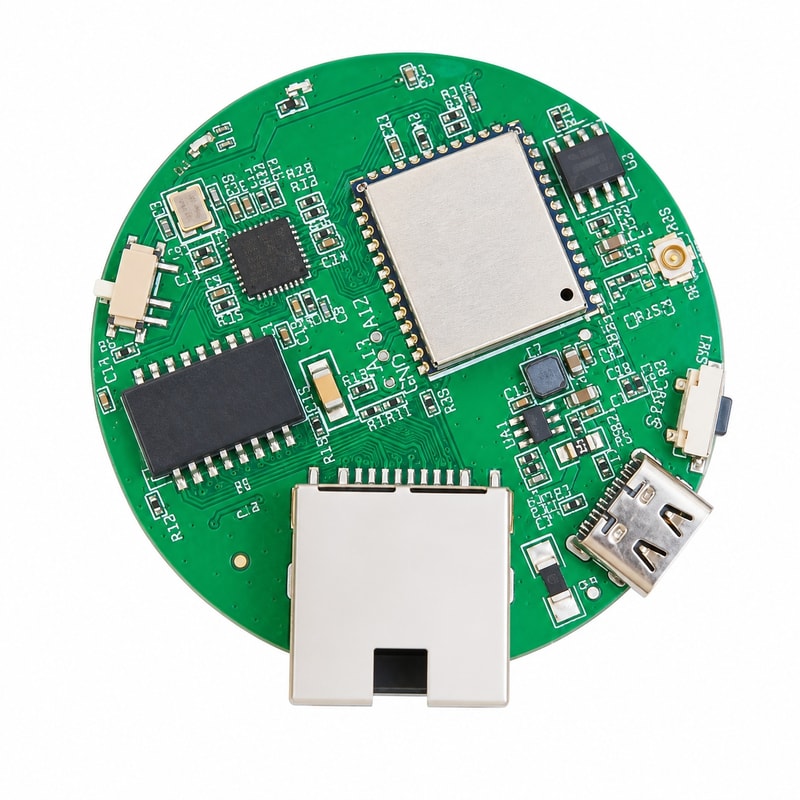

Compact Main Unit
The real main body is presented with the original compact form preserved for integration-oriented viewing.

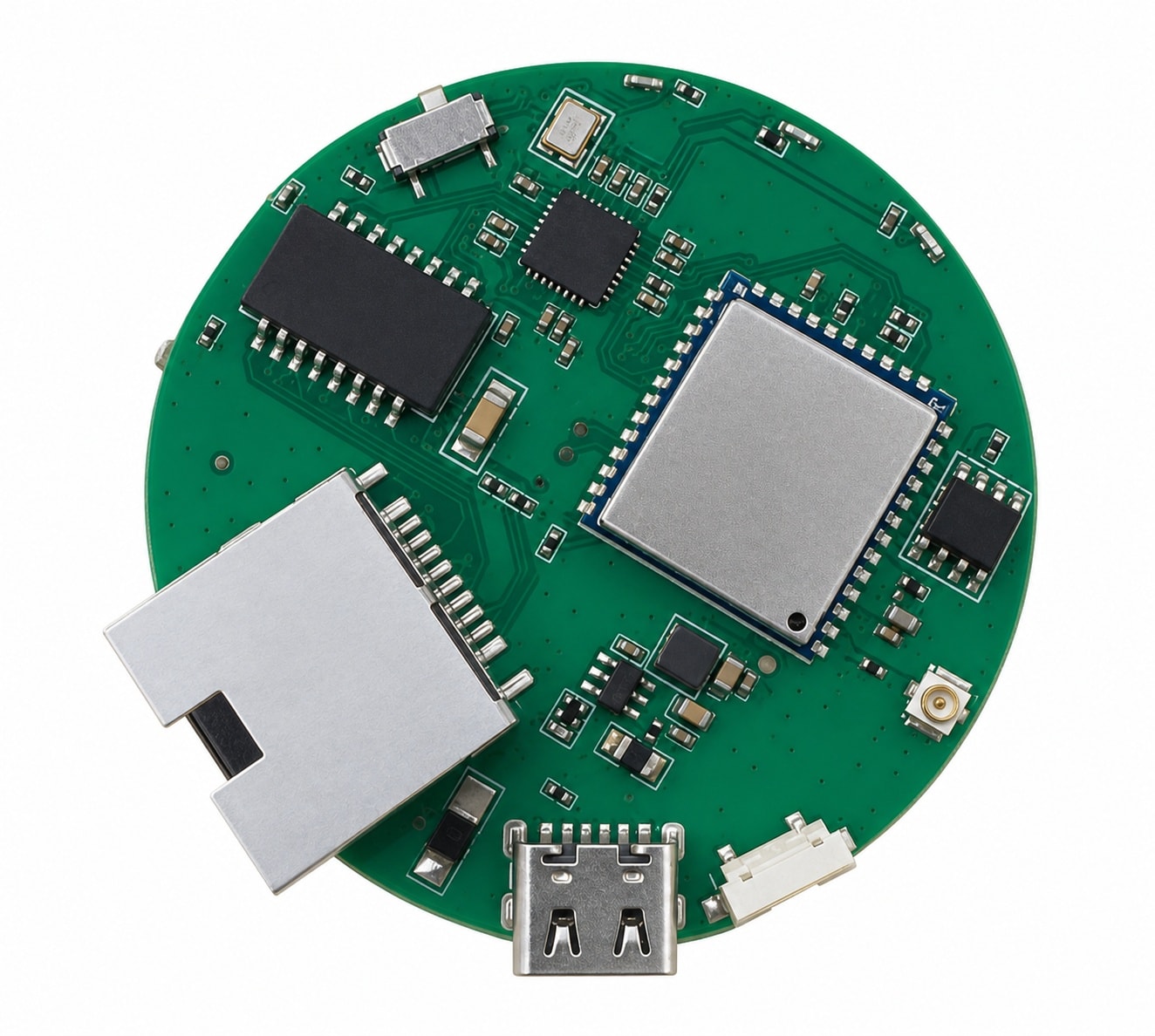

Product Detail
The second image highlights physical structure and layout with no visual alteration to the actual device body.
Applications
Portable monitoring devices
Drone video transmission
Industrial IoT
Smart agriculture
Overview
This model is for compact WiFi HaLow projects that benefit from easy Type-C power input and a small hardware footprint.
Deployment Fit
It is useful for demos, portable monitoring hardware, and embedded devices that need a lighter deployment path than larger outdoor units.
Product Data
Technical Specifications
| Item | Value |
|---|---|
| Communication Standard | IEEE 802.11ah (WiFi HaLow) |
| Frequency Band | 902-928MHz (USA), 863-868MHz (EUR) |
| Channel Bandwidth | 8MHz |
| Data Rate | 16 Mbps |
| Receiver Sensitivity | 1M PPDU = -105dBm, 8M PPDU MCS0 = -95dBm, 8M PPDU MCS7 = -81dBm |
| Max Network Nodes | Up to 8 access points |
| Transmit Power | Max 20dBm (100mW) |
| Modulation | BPSK, QPSK, QAM16, QAM64 |
| Transmission Range | 500m (LOS), 150m (NLOS) |
| Security Protocol | WPA2-PSK |
| Encryption | AES |
| Ethernet Port | 10/100 Mbps |
| Power Supply | Type-C 5V / 1A |
| LED Indicators | Power, AP/Client Mode, Signal Strength |
| Antenna Connector | IPEX |
| Input Voltage | 5V / 1A |
| Operating Temperature | -20C to 70C |
| Storage Temperature | -30C to 80C |
| Operating Humidity | 10% to 90% |
| Storage Humidity | 5% to 95% |
| Dimensions | 38 x 38mm |
| Weight | 9g |
